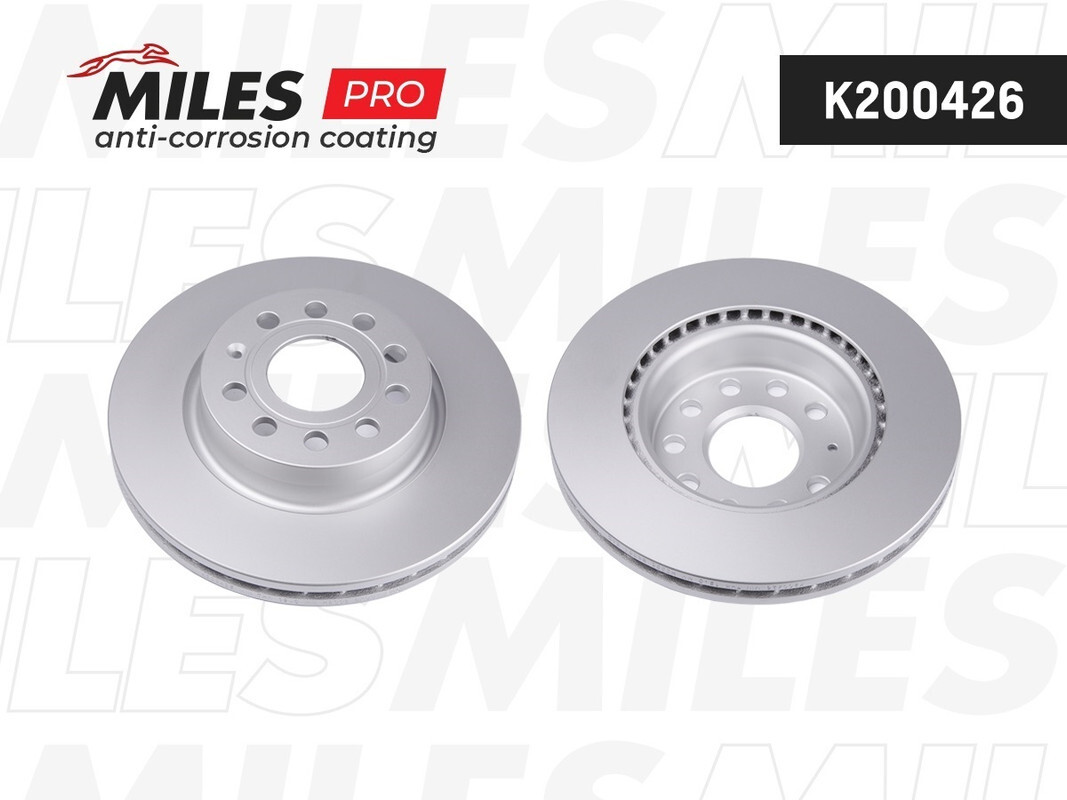

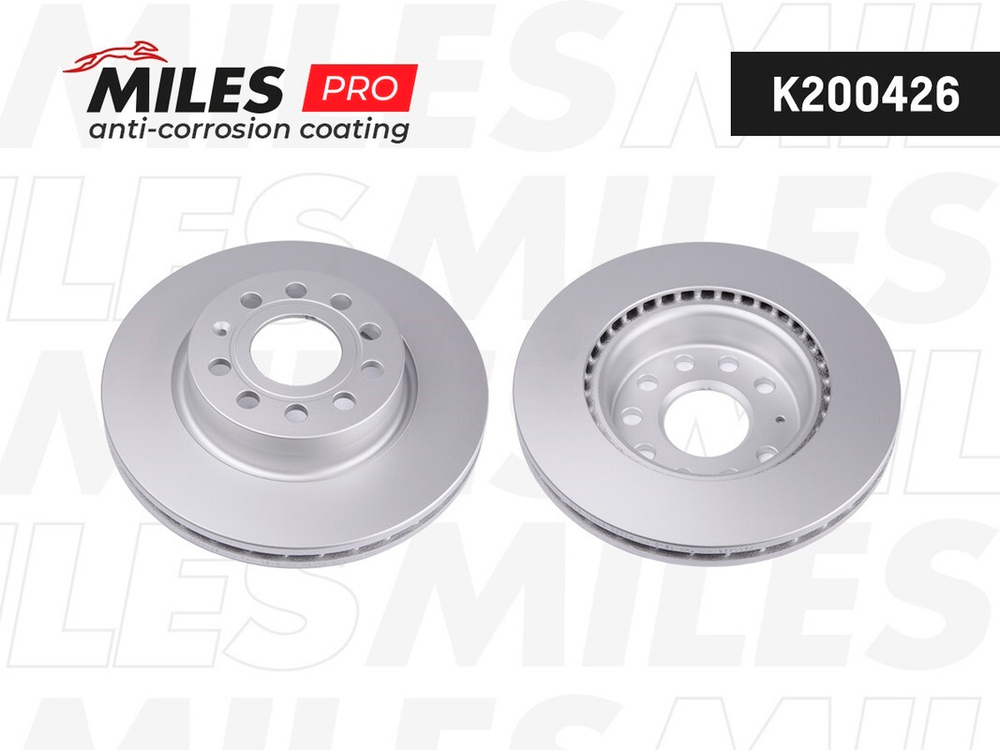

MILES - K200426-MLS - Brake Disc

Utility numbers 1110210 1163109300 16D615301 1K0615301AC 1K0615301AK 1K0615301AQ 1K0615301AS 1K0615301S 1KD615301A 1KD615301C 1KD615301F 22904 355109551 355109561 355109562 355124231 355127991 51830236 5290143P 5C0615301 5C0615301C 664710 78RBD25614 8DD355109551 8DD355109561 8DD355109562 8DD355124231 8DD355127991 8E0098301AA 8E0098301S 8P0098301A ADC1456V ADV184317 B130266 B130266P B130266S BBD4314 BDC5417 BDS1006HC DBA2812 DBA2812E DBA2812S DBA2812X DF4294 DI0934 DI0934C DI956254 DP1010110852 FO2654 J3300815 JZW615301A JZW698302CS K000426 L16D615301 L1KD615301C MDC1639 MDC1639C MDC81639C MDK0219 MVK0060 P330041 PDC4153. Characteristics Fitting Position Front Axle Number of Holes 5 Brake Disc Type Vented Diameter [mm] 280 mm Height [mm] 49 mm Centering Diameter [mm] 65 mm Bolt Hole Circle Ø [mm] 112 mm Wheel Bolt Bore Diameter [mm] 15 mm Brake Disc Thickness [mm] 22 mm Minimum thickness [mm] 19 mm Surface Coated. OE numbers VAG JZW 615 301 A 1K0 615 301 AC 1K0 615 301 AK 1K0 615 301 AS 1K0 615 301 S 16D 615 301 5C0 615 301 5C0 615 301 C. Graphic
