Dealer part number ADN18587-BLU
Part Number ADN18587
Packing unit 1
Quantity per PU -
Parts state Normal
EAN 5050063017168
Vehicle Nissan Qashqai 1/Qashqai+2 1 (J10,
NJ10, JJ10E) 1.6 dCi All-wheel Drive
Constr.year 10.11 - 12.13
Power 96kW / 130HP
Capacity 1598
Engine Code R9M
KBA Keynumber 1329 AFY , 1329 AGA
Characteristics
paired article number ADN18588
Length [mm] 300 mm
External Thread Size M12 x 1,25
Thread Length [mm] 26 mm
Spanner Size 17
DIN/ISO 985
Material Steel
Rod/Strut Coupling Rod
Diameter [mm] 1 mm
Fitting Position Front Axle
Left
Pipe Diameter [mm] 11 mm
Weight [kg] 0,560 kg
Supplementary Article/Supplementary Info with nuts
Utility numbers
4108049, 106132L, 34800 01, NI-LS-7227, 84.74.737, 82 93 0985
OE numbers
Nissan: 54668-JD00A, 54668-1AA0A, 54668-1AA0E, 54668-4CB0A
Renault: 54 66 8JD 00A, 54 66 81A A0E, 54 66 84C B0A
Samsung: 54 66 8JD 00A, 54 66 81A A0E, 54 66 84C B0A, 41960
Accessory Lists
Part Number Parts Description Quantity
ADN18588-BLU
ADN18588
Link/Coupling Rod, stabiliser 1
BLUE PRINT - ADN18587-BLU - Link/Coupling Rod, stabiliser 07.11.2024
Page 1 From
3
Additional information
General Information
These products are designed to be used as originally
intended and not modified for purpose. Please ensure the
products are installed by a competent individual. N.B.
products are usually supplied without fitting instructions.
BLUE PRINT - ADN18587-BLU - Link/Coupling Rod, stabiliser 07.11.2024
Page 2 From
3

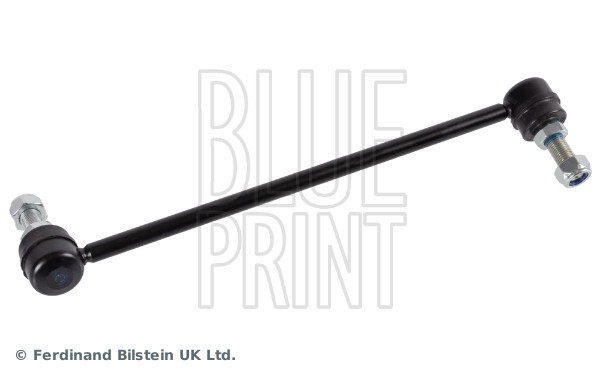

Images
BLUE PRINT - ADN18587-BLU - Link/Coupling Rod, stabiliser
