Dealer part number 40110-BGS
Part Number 40110
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4048769029951
Characteristics
Width [mm] 51 mm
Gross Weight [g] 300
Height [mm] 30 mm
Length [mm] 275 mm
Gross Weight [kg] 0,3 kg
Additional information
Brief Information
Voltage Detector with Digital Display
Technical Information
Packaging suitable for wall hanging: Yes
General Information
- LCD display for AC and DC voltage from 24 V to 690 V
- LED display in following 5 voltage steps: 24 V, 50 V, 120
V, 230 V, 400 V and 690 V
- phase rotation indicator: frequency 50 - 60 Hz / voltage
0 V - 690 V
- continuity tester with acoustic and optical display
- single-pole voltage test
- polarity detection positive / negative (LED display)
- protection class: IP65
- battery test, indicates when the internal battery is weak
- power supply: 2x 1.5 V (R03)
- net weight 210 g
BGS - 40110-BGS - Voltage Detector 31.12.2024
Page 1 From
2
Images

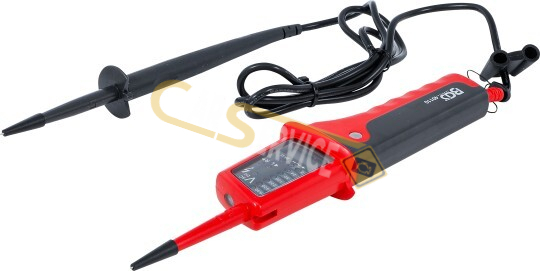

BGS - 40110-BGS - Voltage Detector
