Dealer part number 14110-BGS
Part Number 14110
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4048769031220
Characteristics
Gross Weight [g] 416
Gross Weight [kg] 0,43 kg
Additional information
Brief Information

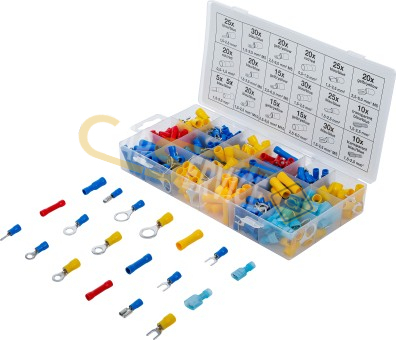

Cable Lug Assortment
360 pcs.
Technical Information
Packaging suitable for wall hanging: Yes
General Information
scope of delivery:
- 20 crimping sleeves, red, 0.5 - 1.5mm²
- 30 crimping sleeves, blue, 1.5 - 2.5mm²
- 15 crimping sleeves, yellow, 4 - 6mm²
- 25 flat plugs partly insulated, blue, 1.5 - 2.5mm²
- 25 flat plug sleeves partly insulated, blue, 1.5 - 2.5mm²
- 5 round connectors partly insulated, blue, 1.5 - 2.5mm²
- 5 round connector sleeves fully insulated, blue, 1.5 - 2.
5mm²
- 30 ring cable lugs partly insulated, blue, Ø 5 mm
- 20 ring cable lugs partly insulated, blue, Ø 6 mm
- 20 ring cable lugs partly insulated, blue, Ø 10 mm
- 20 ring cable lugs partly insulated, yellow, Ø 5 mm
- 15 ring cable lugs partly insulated, yellow, Ø 6 mm
- 15 ring cable lugs partly insulated, yellow, Ø 10 mm
- 30 fork cable lugs partly insulated, blue, Ø 5 mm
- 20 ring fork cable lugs partly insulated, yellow, Ø 5 mm
- 10 flat plugs fully insulated, blue, 1.5 - 2.5 mm²
- 10 flat plug sleeves fully insulated, blue, 1.5 - 2.5 mm²
- 20 plug sleeves fully insulated, red, 0.5 - 1.5 mm²
- 25 mini plugs partly insulated, blue, 1.5 - 2.5mm²
BGS - 14110-BGS - Assortment, cable protection 06.01.2025
Page 1 From
2
Images
BGS - 14110-BGS - Assortment, cable protection
