ATE - 24032501451-ATE - Brake Disc

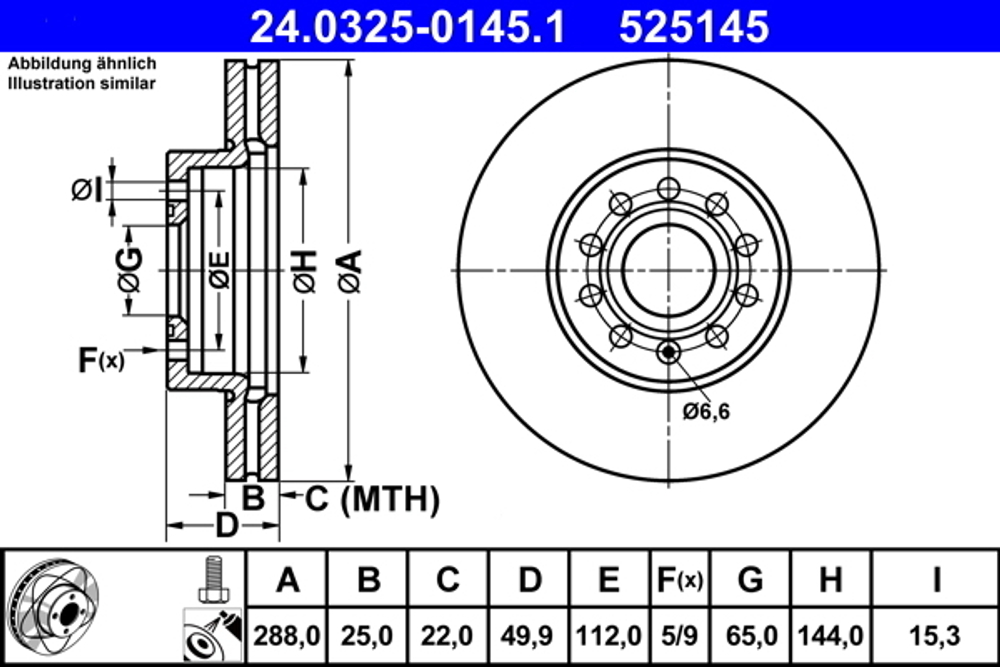

Utility numbers 525145 24.0125-0145.1 0 986 479 088 22902 DDF1218 A1002V DF4295 197325. Characteristics Supplementary Article/Info 2 with bolts/screws Diameter [mm] 288 mm Brake Disc Thickness [mm] 25 mm Minimum thickness [mm] 22 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 No. of holes 2 9 Height [mm] 50 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 144 mm Bolt Hole Circle Ø [mm] 112 mm Bore Diameter [mm] 15 mm Test Mark E1 90R-02C0858/1210 MAPP code available. OE numbers SEAT JZW 615 301 J 1K0 615 301 T 5Q0 615 301 H Skoda JZW 615 301 J 1K0 615 301 T 5Q0 615 301 H VAG JZW 615 301 J 1K0 615 301 K 1K0 615 301 T 5Q0 615 301 H. Graphic Preview
