ATE - 24031002771-ATE - Brake Disc

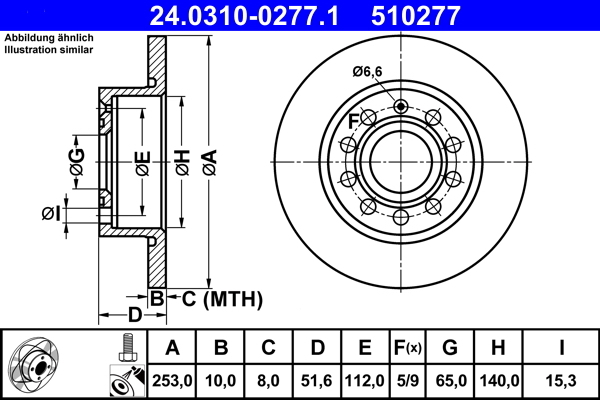

Utility numbers 510277 24.0110-0277.1 DDF1224 A1003P 5Q0615601F DF4276 600.3234.52. Characteristics Diameter [mm] 253 mm Brake Disc Thickness [mm] 10 mm Minimum thickness [mm] 8,0 mm Brake Disc Type Solid Number of Holes 5 Surface Coated No. of holes 2 9 Height [mm] 52 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 140 mm Bolt Hole Circle Ø [mm] 112 mm Bore Diameter [mm] 15 mm Supplementary Article/Info 2 with bolts/screws Test Mark E1 90R-02C0859/1294 MAPP code available. OE numbers SEAT 1K0 615 601 AB 1K0 615 601 K 5Q0 615 601 F Skoda 1K0 615 601 AB 1K0 615 601 K 5Q0 615 601 F VAG 1K0 615 601 AB 1K0 615 601 K 5Q0 615 601 F. Graphic Preview
