Characteristics
Описание
Описание

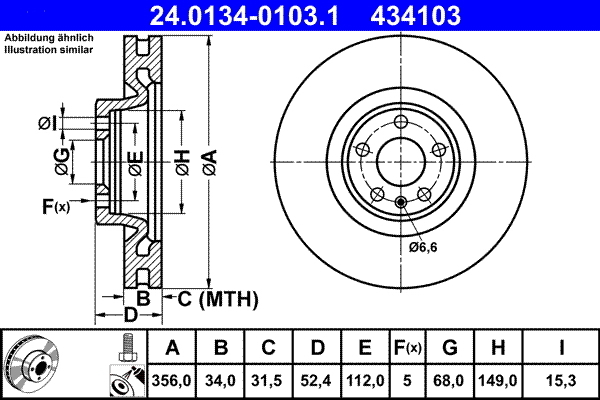

24013401031-ATE Diameter [mm]
356 mm
Brake Disc Thickness [mm]
34 mm
Minimum thickness [mm]
32 mm
Brake Disc Type Vented
Number of Holes 5
Machining High-carbon
Surface Coated
Bolt Hole Circle à [mm]
112 mm
Height [mm]
52 mm
Centering Diameter [mm]
68 mm
Inner Diameter [mm]
149 mm
Bore Diameter [mm]
15 mm
Supplementary Article/Info 2 with bolts/screws
Test Mark E1 90R-02C0115/1004
MAPP code available VAG
4G0 615 301 A
4G0 615 301 K
4G0 615 301 T
4H0 615 301 F
4H0 615 301 K
4H0 615 301 R
Characteristics
Brake system
Brake Disc
