ATE - 24012801541-ATE - Brake Disc

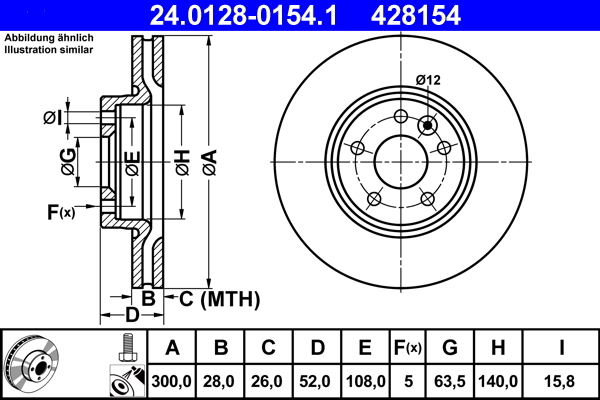

Characteristics Diameter [mm] 300 mm Brake Disc Thickness [mm] 28 mm Minimum thickness [mm] 26 mm Brake Disc Type Vented Machining High-carbon Surface Coated Number of Holes 5 Bore Diameter [mm] 16 mm Bolt Hole Circle Ø [mm] 108 mm Height [mm] 52 mm Centering Diameter [mm] 64 mm Inner Diameter [mm] 140 mm Supplementary Article/Info 2 with bolts/screws MAPP code available Test Mark E1 90R-02C0115/0038. OE numbers Ford 1379965 1384689 1405510 1420600 1420601 1469085 1500158 1517696 6G91-2C375-F1B 7G91-1125-BA Land Rover LR000571 LR007055 Volvo 30769056 31202331 31341382. Graphic Preview
