Dealer part number 24012501581-ATE
Part Number 24.0125-0158.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633209489

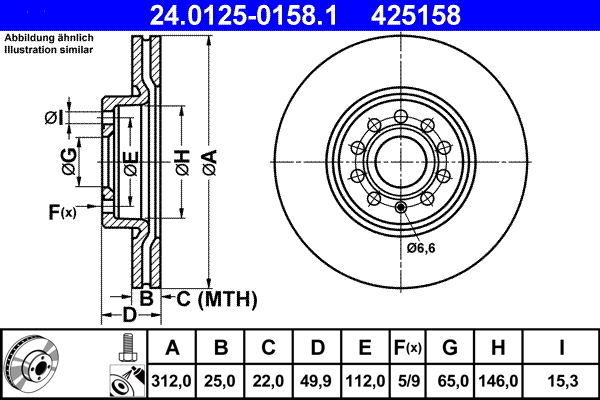

Characteristics
Diameter [mm] 312 mm
Brake Disc Thickness [mm] 25 mm
Minimum thickness [mm] 22 mm
Brake Disc Type Vented
Machining High-carbon
Surface Coated
Number of Holes 5
No. of holes 2 9
Bolt Hole Circle Ø [mm] 112 mm
Height [mm] 50 mm
Centering Diameter [mm] 65 mm
Inner Diameter [mm] 146 mm
Bore Diameter [mm] 15 mm
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Test Mark E1 90R-02C0115/1001
Utility numbers
425158, 24.0325-0158.1, DDF1305, A1004V, 5Q0615301F, DF4464S, 100.3300.20
OE numbers
SEAT: JZW 615 301 H, 1K0 615 301 AA, 5Q0 615 301 F
Skoda: JZW 615 301 H, 1K0 615 301 AA, 5Q0 615 301 F
VAG: JZW 615 301 H, 1K0 615 301 AA, 5C0 615 301 B, 5Q0 615 301 F
