Dealer part number 24012202191-ATE
Part Number 24.0122-0219.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633229630
Characteristics
Diameter [mm] 310 mm
Brake Disc Thickness [mm] 22 mm
Minimum thickness [mm] 20 mm
Brake Disc Type Vented
Number of Holes 5
Machining High-carbon
Surface Coated
MAPP code available
No. of holes 2 9
Bolt Hole Circle Ø [mm] 112 mm
Height [mm] 49 mm
Centering Diameter [mm] 65 mm
Inner Diameter [mm] 169 mm
Bore Diameter [mm] 15 mm
Test Mark E1 90R-02C0118/0945
Utility numbers
422219, 24386, DF4754, 100.3309.20, 100.3309.52
OE numbers
SEAT: 1K0 615 601 N, 5Q0 615 601 E
Skoda: 1K0 615 601 N, 5Q0 615 601 E
VAG: 1K0 615 601 N, 5Q0 615 601 E, 92140703
ATE - 24012202191-ATE - Brake Disc 21.01.2025
Page 1 From
2
Images

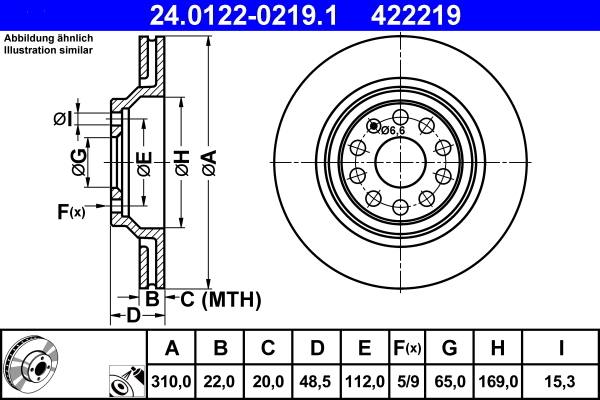

ATE - 24012202191-ATE - Brake Disc
