Dealer part number 24012201511-ATE
Part Number 24.0122-0151.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633298216
Characteristics
Diameter [mm] 256 mm
Brake Disc Thickness [mm] 22 mm
Minimum thickness [mm] 19 mm
Brake Disc Type Vented
Machining High-carbon
Surface Coated
Number of Holes 5
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Bolt Hole Circle Ø [mm] 100 mm
Height [mm] 37 mm
Centering Diameter [mm] 65 mm
Inner Diameter [mm] 134 mm
Bore Diameter [mm] 16 mm
Test Mark E1 90R-02C0118/0141
Utility numbers
422151, 0 986 478 853, 14404, DDF927, A1461V, DF2803, 100.1233.20
92082205
OE numbers
SEAT: 1J0 615 301 D, 1J0 615 301 L, 6QD 615 301, 6R0 615 301, 6R0 615 301 C
Skoda: 1J0 615 301 D, 1J0 615 301 L, 6QD 615 301, 6R0 615 301, 6R0 615 301 C
VAG: 1J0 615 301 D, 1J0 615 301 L, 6QD 615 301, 6R0 615 301, 6R0 615 301 C, 8Z0 615 301 B, 8Z0 615 301 D
ATE - 24012201511-ATE - Brake Disc 03.12.2024
Page 1 From
2
Images

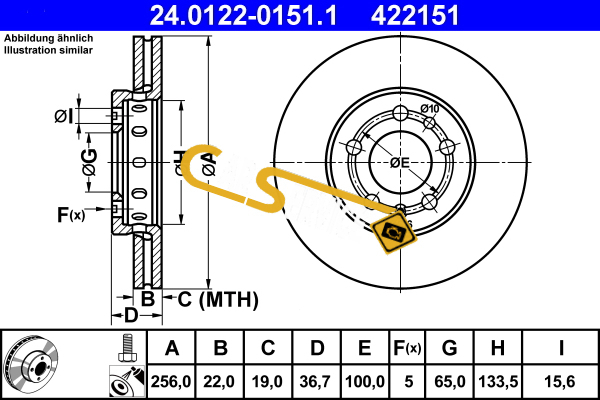

ATE - 24012201511-ATE - Brake Disc
