ATE - 24011201581-ATE - Brake Disc

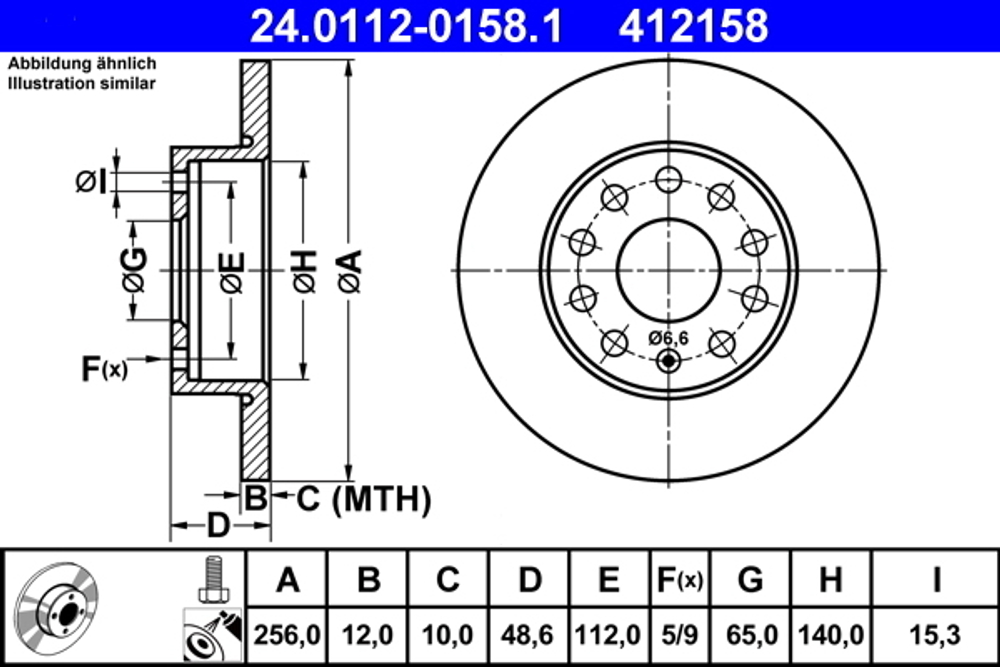

Utility numbers 412158 24.0312-0158.1 0 986 479 155 36215 DF4271 600.3222.20. Characteristics Diameter [mm] 256 mm Brake Disc Thickness [mm] 12 mm Minimum thickness [mm] 10,0 mm Brake Disc Type Solid Surface Coated Number of Holes 5 No. of holes 2 9 Height [mm] 49 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 140 mm Bolt Hole Circle Ø [mm] 112 mm Bore Diameter [mm] 15 mm Supplementary Article/Info 2 with bolts/screws MAPP code available Test Mark E1 90R-02C0165/0625. OE numbers SEAT 1K0 615 601 AC 1K0 615 601 AJ 1K0 615 601 L Skoda 1K0 615 601 AC 1K0 615 601 AJ 1K0 615 601 L VAG 1K0 615 601 AC 1K0 615 601 AJ 1K0 615 601 L. Documents/Illustrations Service Information: SI 200.043. Graphic Preview
