ATE - 24011002771-ATE - Brake Disc

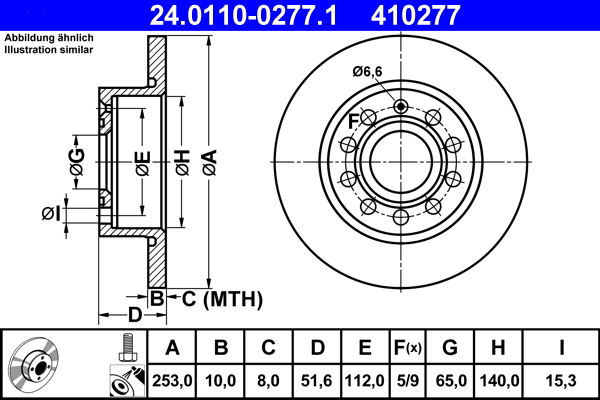

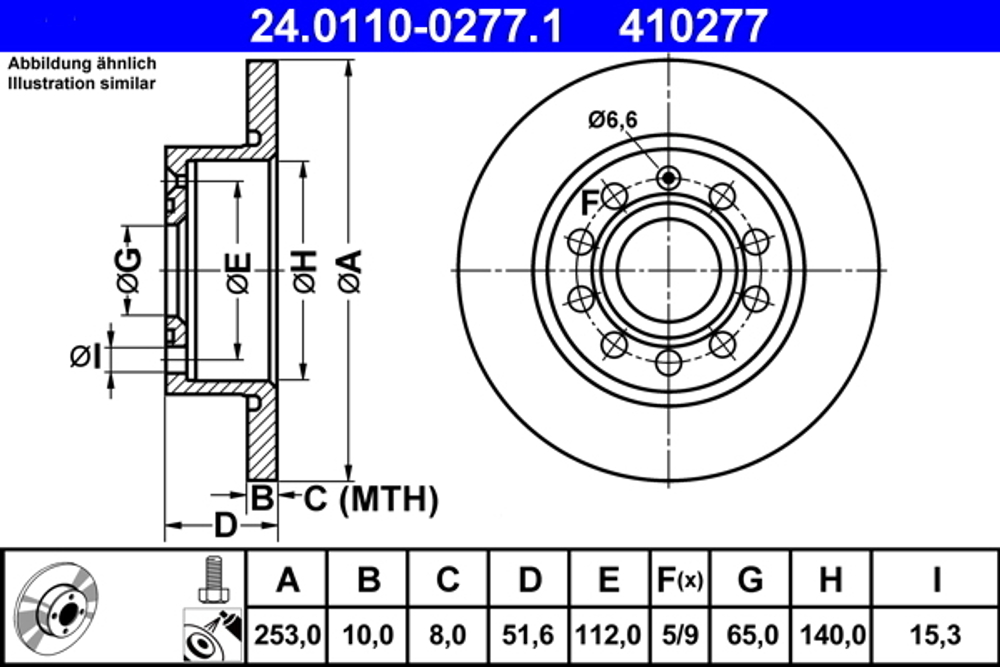

Utility numbers 410277 24.0310-0277.1 DDF1224 A1003P DF4276 600.3234.20 600.3234.52. Characteristics Diameter [mm] 253 mm Brake Disc Thickness [mm] 10 mm Minimum thickness [mm] 8,0 mm Brake Disc Type Solid Number of Holes 5 Surface Coated No. of holes 2 9 Height [mm] 52 mm Centering Diameter [mm] 65 mm Inner Diameter [mm] 140 mm Bolt Hole Circle Ø [mm] 112 mm Bore Diameter [mm] 15 mm Supplementary Article/Info 2 with bolts/screws MAPP code available Test Mark E1 90R-02C0165/0815. OE numbers SEAT 1K0 615 601 AB 1K0 615 601 K 5Q0 615 601 F Skoda 1K0 615 601 AB 1K0 615 601 K 5Q0 615 601 F VAG 1K0 615 601 AB 1K0 615 601 K 5C0 615 601 5Q0 615 601 F. Documents/Illustrations Service Information: SI 200.043. Graphic Preview
