Dealer part number 24010901231-ATE
Part Number 24.0109-0123.1
Packing unit 1
Quantity per PU 2
Parts state Normal
EAN 4006633297707
Characteristics
Diameter [mm] 230 mm
Brake Disc Thickness [mm] 9 mm
Minimum thickness [mm] 7,0 mm
Brake Disc Type Solid
Number of Holes 5
Surface Coated
Bolt Hole Circle Ø [mm] 100 mm
Height [mm] 41 mm
Centering Diameter [mm] 65 mm
Inner Diameter [mm] 126 mm
Bore Diameter [mm] 16 mm
Supplementary Article/Info 2 with bolts/screws
MAPP code available
Test Mark E1 90R-02C0165/0960
Utility numbers
409123, 0 986 478 868, DDF929, A1441P, DF2805, 100.1236.20, 100.1236.52
Replacement numbers
24.0109-0164.1
OE numbers
SEAT: 1J0 615 601, 1J0 615 601 C, 1J0 615 601 N, 1J0 615 601 P, 1J0 615 601 Q, 2Q0 615 601 H
Skoda: 1J0 615 601, 1J0 615 601 C, 1J0 615 601 N, 1J0 615 601 P, 1J0 615 601 Q, 2Q0 615 601 H
VAG: 1J0 615 601, 1J0 615 601 C, 1J0 615 601 N, 1J0 615 601 P, 1J0 615 601 Q, 2Q0 615 601 H
92082503
ATE - 24010901231-ATE - Brake Disc 04.12.2024
Page 1 From
2
Images

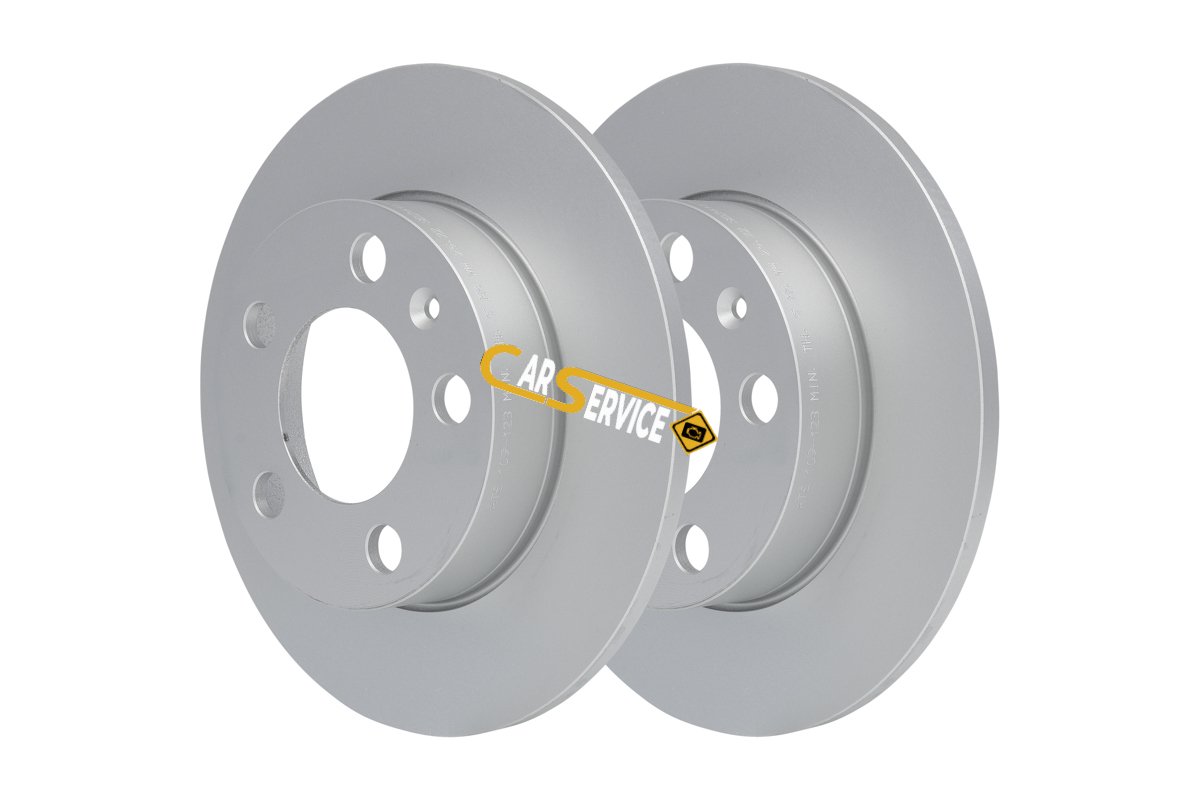

ATE - 24010901231-ATE - Brake Disc
