Dealer part number 13046071842-ATE
Part Number 13.0460-7184.2
Packing unit 1
Quantity per PU 1
Parts state Normal
EAN 4006633118033
Characteristics

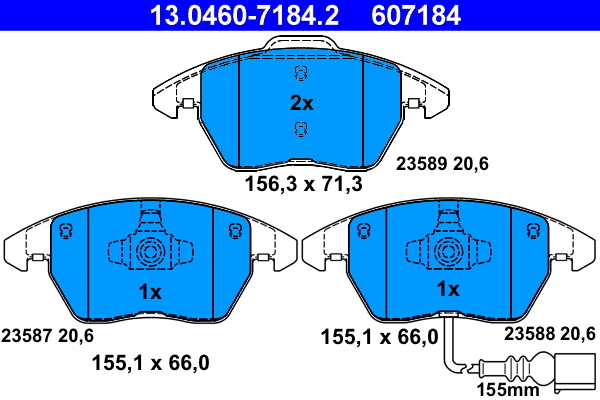

Width 1 [mm] 155 mm
Height 1 [mm] 66 mm
Width 2 [mm] 156 mm
Height 2 [mm] 71 mm
Thickness [mm] 21 mm
Wear Warning Contact incl. wear warning contact
Warning Contact Length [mm] 155 mm
Number of wear indicators [per axle] 1 Per axle
Brake System ATE
Test Mark E1 90R-02A0334/0194
MAPP code available
Additional parts information
Comparison numbers
BREMSI: BP3103
Utility numbers
23587, 23588, 23589, 607184, 13.0460-7226.2, 13.0470-7184.2, 0 986 424 797, FDB1641, 05P866,
GDB1550, 598635
OE numbers
SEAT: 1K0 698 151, 1K0 698 151 E, 3C0 698 151 B, 3C0 698 151 C, 3C0 698 151 D, 3C0 698 151 J, 3C0 698 151 K,
3C0 698 151 P, 5K0 698 151, 5K0 698 151 B
Skoda: 1K0 698 151, 1K0 698 151 E, 3C0 698 151 B, 3C0 698 151 C, 3C0 698 151 D, 3C0 698 151 J, 3C0 698 151 K,
3C0 698 151 P, 5K0 698 151, 5K0 698 151 A, 5K0 698 151 B
VAG: JZW 698 151 B, 1K0 698 151, 1K0 698 151 C, 1K0 698 151 E, 3C0 698 151, 3C0 698 151 A, 3C0 698 151 B, 3C0
698 151 C, 3C0 698 151 D, 3C0 698 151 J, 3C0 698 151 K, 3C0 698 151 P, 5K0 698 151, 5K0 698 151 A, 5K0 698 151 2469602, 2358701
B
ATE - 13046071842-ATE - Brake Pad Set, disc brake 14.11.2024
Page 1 From
2
Images
ATE - 13046071842-ATE - Brake Pad Set, disc brak
